In the demanding industrial environments of Southeast Asia and the Middle East, the efficiency of your heat rejection system relies heavily on the quality of the heat transfer media. As a specialized manufacturer, we understand that selecting the right Cooling Tower Fill is the most critical decision for maintaining optimal plant performance. Whether you are upgrading an aging system or specifying for a new project, this guide covers the essential aspects of fill selection, materials, and complementary components.

1. Understanding Tower Types: Counterflow vs. Crossflow

The choice of fill media is dictated by the design of your cooling tower. Using the wrong configuration can lead to poor thermal performance and increased pressure drop.

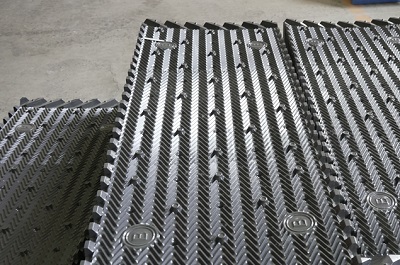

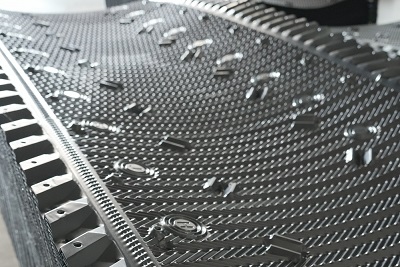

Counterflow Film Fill

In counterflow towers, air moves vertically against the falling water. Our Counterflow Film Fill is engineered with intricate flute geometries (such as CrossFluted designs) to maximize the specific surface area. This allows for superior heat transfer efficiency in a compact footprint, ideal for space-constrained industrial sites.

Crossflow Film Fill

For crossflow systems, where air flows horizontally, the fill media often incorporates integral louvers and drift eliminators. Crossflow Film Fill is widely used in larger field-erected towers in Japan and Korea due to its lower static pressure drop and ease of maintenance.

2. Material Matters: PVC vs. PP Fill Media

Environmental conditions dictate the material choice. We offer two primary grades to ensure longevity:

• PVC Cooling Tower Fill: The standard for most HVAC and light industrial applications. Our PVC sheets are self-extinguishing and offer excellent resistance to weather and chemical erosion.
• PP Fill Media (Polypropylene): For the high-temperature environments often found in the Middle East, or for industrial water containing higher levels of chemicals, PP cooling tower fill is recommended. It can withstand temperatures exceeding 80°C without deformation.

3. Structure and Efficiency

The core function of the fill is to create a "film" of water to increase contact with air. High-performance Corrugated Fill designs ensure uniform water distribution, preventing "dry spots" that reduce efficiency. By optimizing the flute angle and texture, our fill media significantly improves the cooling range (Delta T) while keeping fan energy consumption low.

4. Beyond the Fill: Complete Cooling Tower Solutions

While the fill is the heart of the tower, maintaining overall efficiency requires a holistic approach. We manufacture essential accessories that work in harmony with your fill media:

Air Intake Grille (Inlet Louvers)

To prevent debris, sunlight, and biological growth (algae) from entering the tower basin, high-quality inlet louvers are essential. Our Air Intake Grille is designed to straighten the airflow into the tower, reducing turbulence and improving the aerodynamic efficiency of the fill pack. It also acts as a barrier against splash-out.

Cooling Tower Water Collector (Drift Eliminators)

Water conservation is critical. Installed above the fill, our Cooling Tower Water Collector effectively captures water droplets entrained in the air stream. This not only saves water and chemicals but also prevents "drift" from carrying potentially harmful bacteria into the surrounding environment.

5. Sizing and Customization Guide

One size does not fit all. When ordering round cooling tower fill or block fills, precise sizing is crucial to avoid on-site cutting waste. We offer full customization:

• Dimensions: Custom Length, Width, and Height to fit your specific tower beams.
• Sheet Thickness: Optimized options (e.g., 0.30mm - 0.45mm) to balance durability and cost.
• Bonding: We provide both glued blocks (ready to install) and loose sheets for on-site assembly to save on shipping costs to overseas markets.

6. Maintenance for Long-Term Performance

To extend the lifespan of your investment:

• Inspect the fill bottom layer regularly for scaling or clogging.
• Ensure the Air Intake Grille is free from leaves and debris to maintain airflow.
• Avoid using harsh solvents that might damage PVC materials during cleaning.

Conclusion

From high-efficiency PVC film fill to high-temperature PP fill media, we provide comprehensive solutions for the global market. Our products are engineered to meet the rigorous demands of clients worldwide.
